1.25G 120km 1550nm
千兆光模块1550nm,120km

SFP5524-12xx

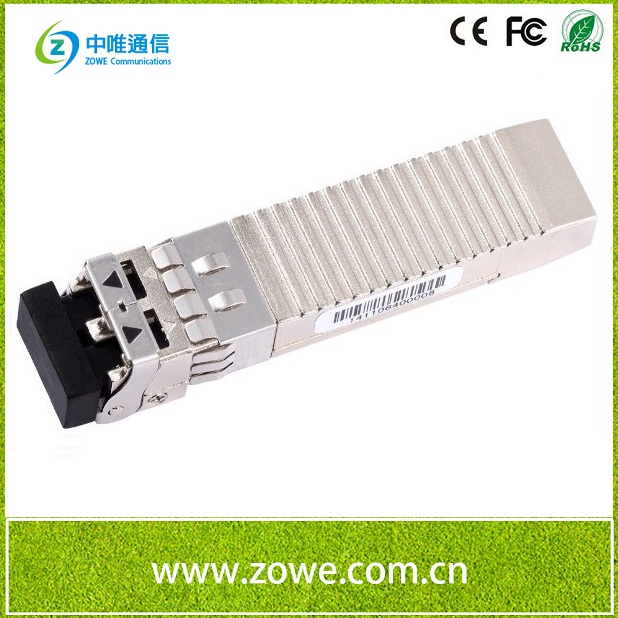

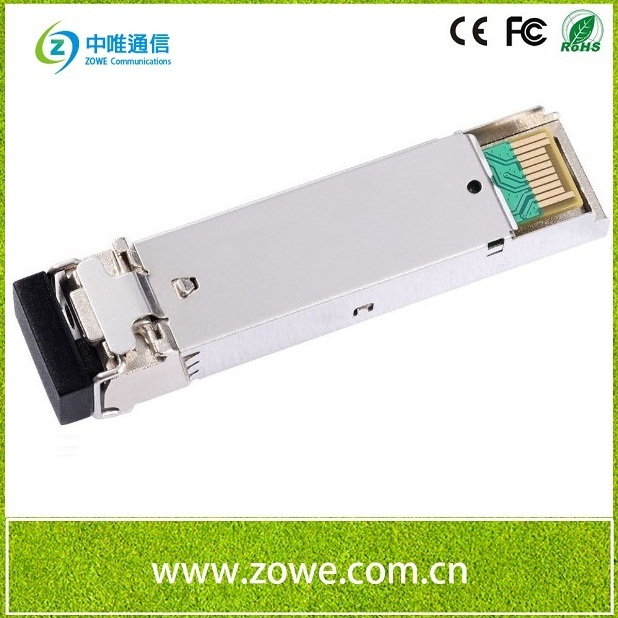

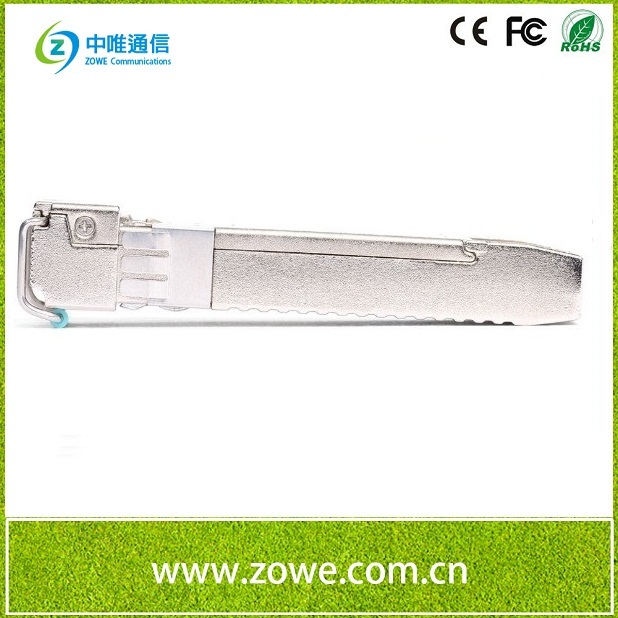

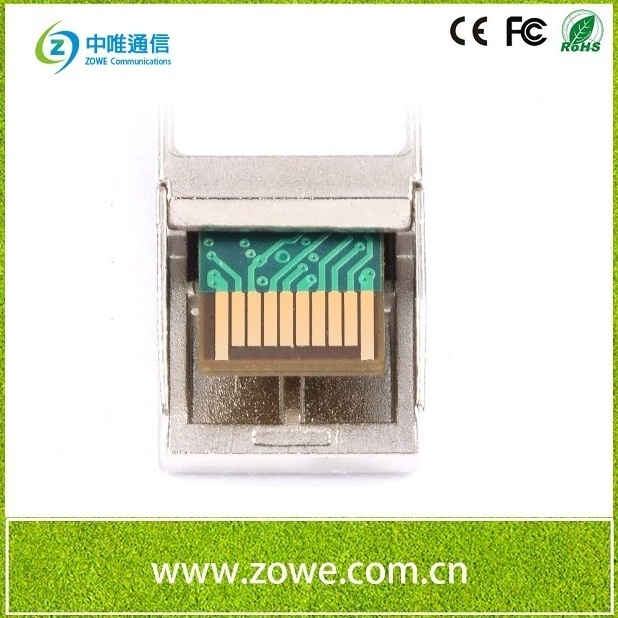

1.25G SFP Optical Transceiver, 120km Reach LC

SFP5524-12xx

1.25G SFP Optical Transceiver, 120km  Reach LC



Features

  • Dual data-rate of 1.25G operation
  • 1550nm EML laser for 120km transmission

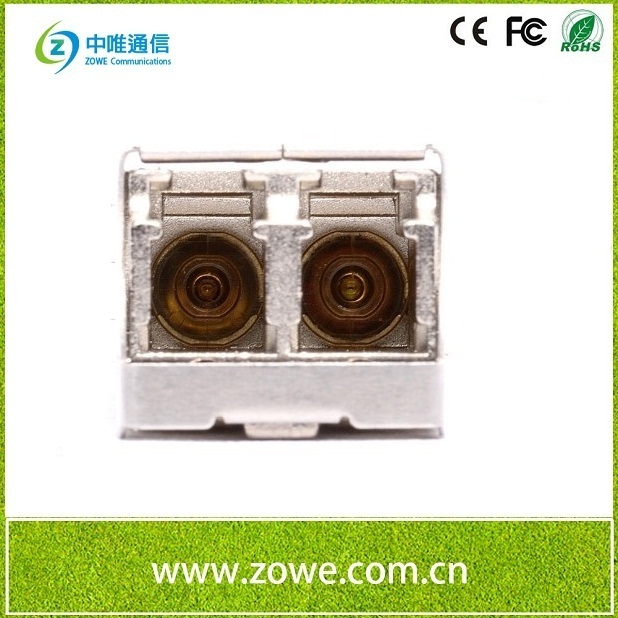

  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Digital Diagnostic Monitoring: Internal Calibration or External Calibration
  • Compatible with SONET OC-24-LR-1
  • Compatible with RoHS
  • +3.3V single power supply
  • Operating case temperature:
  • Standard : -5 to +70°C
  • Industrial : -40 to +85°C

Applications

  • Gigabit Ethernet
  • Fiber Channel
  • Switch to Switch interface
  • Switched backplane applications
  • Router/Server interface
  • Other optical transmission systems

The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25G and 120km transmission distance with SMF.


The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.


The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.





Ordering Information

Part Number

Product Description

SFP5524-12NC

1550nm, 1.25Gbps, 120km, -5ºC ~ +70ºC, Without DDM

SFP5524-12DC

1550nm, 1.25Gbps, 120km, -5ºC ~ +70ºC, With DDM

SFP5524-12DT

1550nm, 1.25Gbps, 120km, -40ºC ~ +85ºC, With DDM
