SFP5524-L4xx

 1.25G SFP Optical Transceiver, 40km  Reach LC

Features

• Dual data-rate of 1.25G operation
• 1550nm DFB laser for 40km transmission

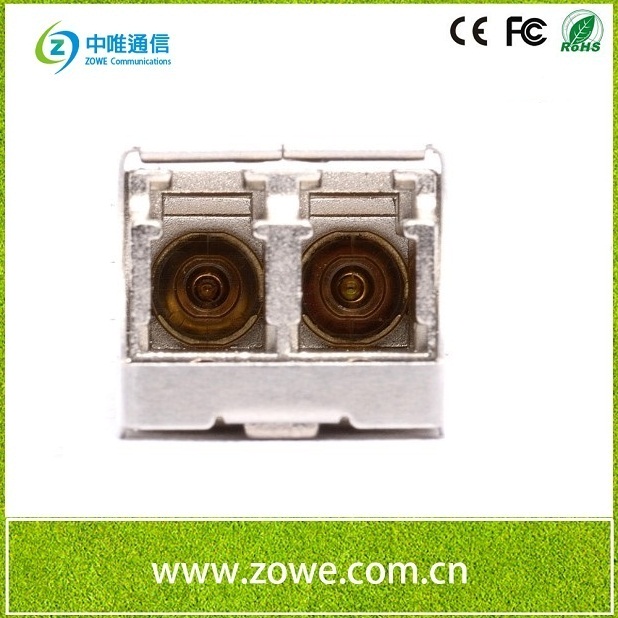

• Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
• Digital Diagnostic Monitoring: Internal Calibration or External Calibration
• Compatible with SONET OC-24-LR-1
• Compatible with RoHS
• +3.3V single power supply
• Operating case temperature:
• Standard : -5 to +70°C
• Industrial : -40 to +85°C

Applications

• Gigabit Ethernet
• Fiber Channel
• Switch to Switch interface
• Switched backplane applications
• Router/Server interface
• Other optical transmission systems

The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25G and 40km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
